380,000

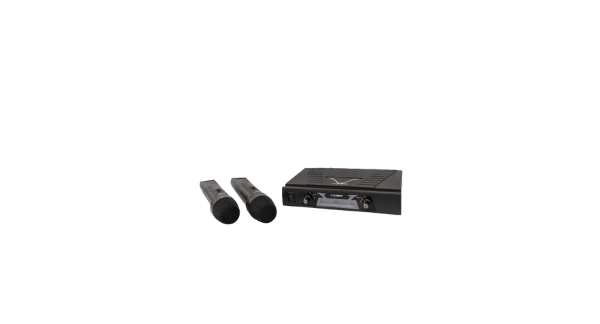

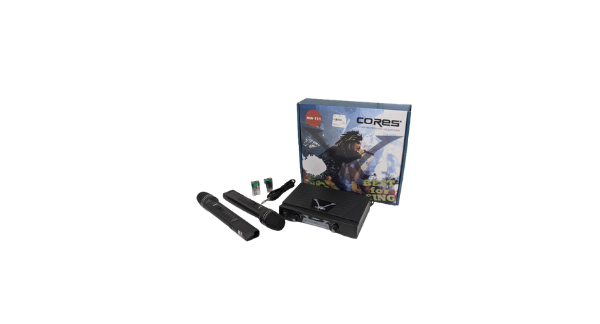

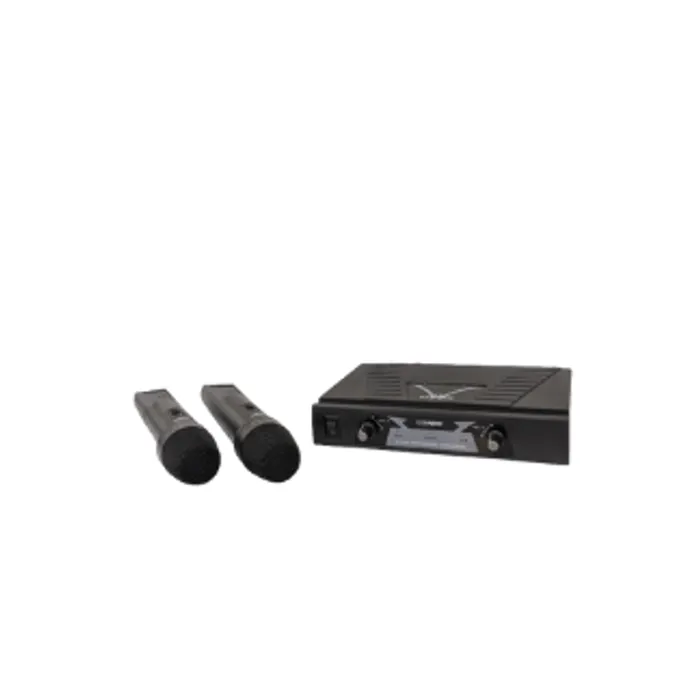

CORES - WIRELESS MIC MW111

CORES MIC WIRELESS MW111

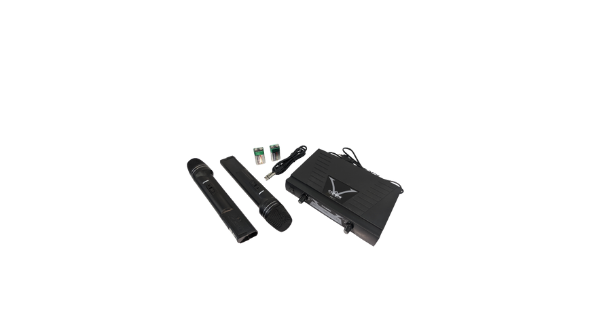

- 2X Micriphone transmitter units

- Receiver unit

- Audio mono cable

- 2x 9volt Batteries

SYSTEM SPECIFICATION

Carrier Freq. : 180-270 MHz

Audio Freq.Response : 80 Hz-12KHz

Dyanamic Range : >60dB

THD : 0.8%

S/N Ratio : > ± 60dB

Working Range : Approx 50 M

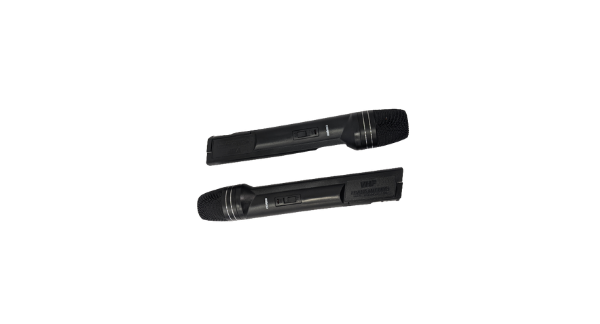

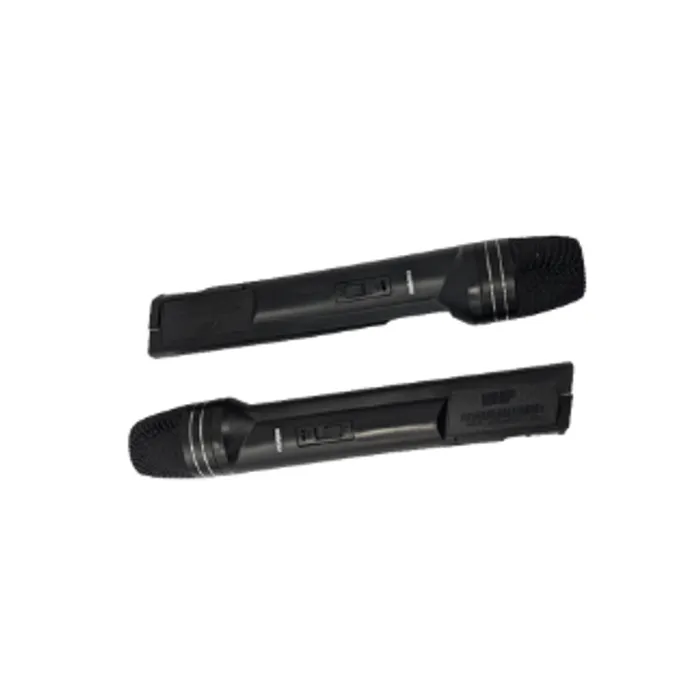

TRANSMITER

RF Outout power : < 30mw

Max. Deviation : ± 75 KHz

Freq. Stability : ±0.005%

Continous Working Time : Up to 7 hours

RECEIVER

Power Supply : AC 220-240V 50/60 Hz

Power Consumption : 1W

Receiving Sensitivity : S/N = 30dB < 2PV
