Rp 4,626,500

PANASONIC SPLIT AC CSPN9WKJ+CUPN9WKJ

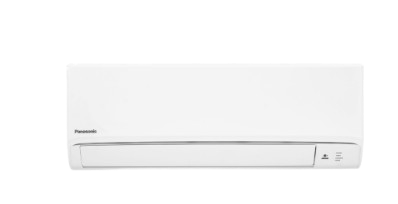

Model Indoor (50Hz) CS-PN9WKH-1

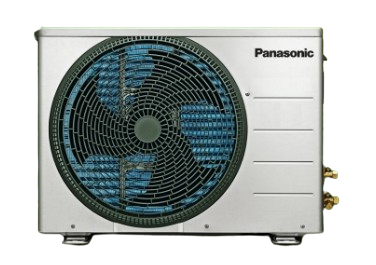

Outdoor (50Hz) CU-PN9WKH-1

Refrigerant Type R32

Cooling Capacity (min-max) kW 2.78

(min-max)Btu/h 9,500

EER (min-max) Btu/hW 11.59

(min-max) W/W 3.39

CSPF 3.48

Electrical Data Voltage (V) 230

Running Current (A) 3.7

Power Input (W) 820

Moisture Removal L/h 1.6

Pt/h 3.4

Air Circulation Indoor m3/min (ft3/min) 10.9 (385)

Outdoor m3/min (ft3/min) 28.8 (1,020)

Noise Level Indoor (H/L/Q-Lo) (dB-A) 38/26

Outdoor (H / L) (dB-A) 48

Dimensions Height (mm) 290 (511)

Height (inch) 11-7/16 (20-1/8)

Width (mm) 779 (650)

Width (inch) 30-11/16 (25-19/32)

Depth (mm) 209 (230)

Depth (inch) 8-1/4 (9-1/16)

Net Weight Indoor kg (lb) 8 (18)

Outdoor kg (lb) 21 (46)

Refrigerant Pipe Diameter Liquid Side (mm) ø 6.35

Liquid Side (inch) 1/4

Gas Side (mm) ø 9.52

Gas Side (inch) 3/8

Pipe Extension Chargeless Pipe Length (m) 7.5

Maximum Pipe Length (m) 20

Maximum Elevation Length (m) 15

Additional Refrigerant Gas* (g/m) 10

Power Supply Indoor

Cleaner Air nanoeTMX No

nanoe-G No

Anti-Dust Coating No

Dust Sensor No

Odour-Removing Function Yes

Removable, Washable Panel Yes

Comfort Radiant Cooling No

iAUTO-X No

iAUTO No

ECONAVI No

ECO Mode with A.I. No

Temperature Wave No

SLEEP Yes

Inverter Control No

Powerful Mode Yes

Quiet Mode Yes

Soft Dry Operation Mode Yes

Personal Airflow Creation No

Airflow Direction Control (Up Down) Yes

Manual Horizontal Airflow Direction Control Yes

Convenience 24-Hour Dual ON OFF Real Setting Timer No

24-Hour ON OFF Real Setting Timer Yes

LCD Wireless Remote Control Yes

Wireless LAN Remote Control For Internet Connection No

Wired Remote Control Yes (Optional)

Reliability Random Auto Restart (32 Restart Patterns) Yes

Blue Fin Condenser Yes

Long Piping (Numbers indicate the maximum pipe length) 30m

Top-Panel Maintenance Access Yes

Self-Diagnostic Function No

NOTE Please do not use copper pipes that are less than 0.6mm in thickness.

*When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit.

Color Putih
