Rp 2,693,250

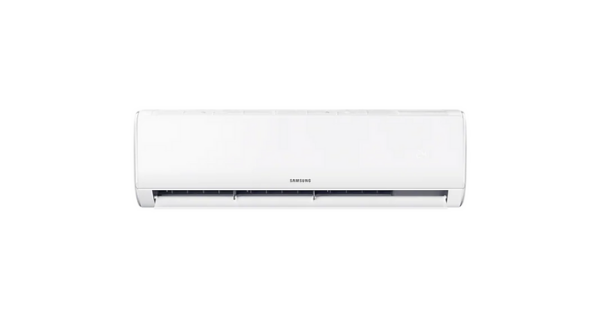

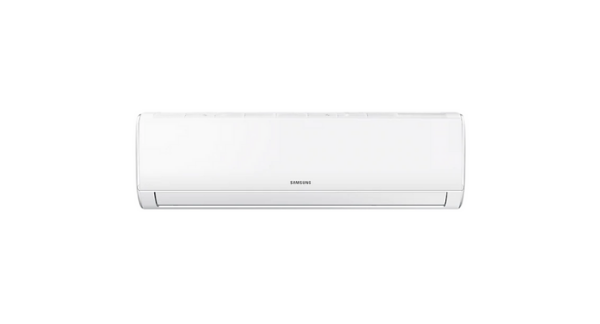

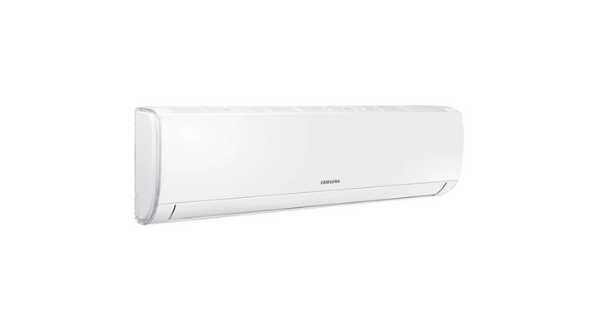

SAMSUNG - SPLIT AC AR05TGHQASINSE

Spesifikasi

Capacity

4800 Btu/hr

Capacity (Cooling, kW)

1.406 kW

EER (Cooling, W/W)

4.02 W/W

Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

681x285x434 mm

Detail Spesifikasi

Capacity

Capacity (Cooling, Btu/hr)

4800 Btu/hr

Capacity (Cooling, kW)

1.406 kW

Energy Efficiency

EER (Cooling, W/W)

4.02 W/W

EER (Cooling, Btu/hW)

13.72 Btu/hW

Energy Star Rating (Cooling)

4 Star

Noise Level

Noise Level (Indoor, High/Low, dBA)

36/27 dBA

Noise Level (Outdoor, High/Low, dBA)

47 dBA

Electrical Data

Power Source(Φ/V/Hz)

1 / 220-240 / 50

Power Consumption(Cooling, W)

350 W

Operating Current(Cooling, A)

1.50 A

Spesifikasi Fisik

Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

780x270x365 mm

Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

795x345x505 mm

Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)

715x194x285 mm

Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)

681x285x434 mm

Gross Weight (Indoor, kg)

10.00 kg

Gross Weight (Outdoor, kg)

20.50 kg

Net Weight (Indoor, kg)

7.80 kg

Net Weight (Outdoor, kg)

18.50 kg

Loading Quantity (20/40/40Hft without Pipe)

132/280/318

Technical Information

Piping Length (Max, m)

20.0 m

Piping Height (Max, m)

8.0 m

SVC Valve (Liquid (ODxL))

6.35

SVC Valve (Gas (ODxL))

9.52

Moisture Removal (l/hr)

0.6 l/hr

Air Circulation (Cooling, ㎥/min)

6.33 ㎥/min

Refrigerant (Type)

R32

Low Ambient (Cooling, ℃)

18~43 ℃

Outdoor Unit (Compressor Type)

ROTARY

Air Flow

Air Direction Control (Up/Down)

Auto

Air Direction Control (Left/Right)

Manual

Air Flow Control Step (Cool/Fan)

3 / 3

Convenience

Indoor Temp. Display

Yes

Display On/Off

Yes

Beep On/Off

Yes

24-Hour Timer

Yes

Auto Restart

Yes

Operating Mode

Auto Mode

Yes

Fast Cool

Yes

Good Sleep

Yes

Dehumidification

Yes

Fan Mode

Yes

Smart

WiFi Embedded

No

App Connectivity

SmartThings App Support

No
