SONY LED TV K85XR90
Specifications
Accessibility Features
Color Inversion
Yes
Screen Reader
Yes
Audio Description
Yes
Closed Captions (Digital)
Closed Caption
Text Magnification
Yes
Accessibility Shortcut
Yes
Voice Search
Yes
Accessible Initial setup with TalkBack
Yes
Menu timeout settings
Yes
Power-on Volume settings
Yes
TALKBACK
Yes
Switch Access
Yes
Audio Specs
Channel
2.2.2ch
Speaker Position
Front + Side + Top
Bass/Treble/Balance
Balance
Speaker type
Acoustic Multi-Audio+
Speaker Configuration
Multi way Multi-amplifier connections (Tweeter x 2, Mid Range x 2, Subwoofer x 2, Beam Tweeter x 2)
Digital audio out (Optical) format
Two channel linear PCM: 48kHz 16bits, Dolby Audio, DTS
Carton Spec
Max Qty of carton stacking (vertical)
2
Max Qty of carton stacking (horizontal) *only for Shop Front
N/A
Customizing Capability
RS-232C Control
Yes
Design Features
STAND COLOR
Dark silver/Hairline

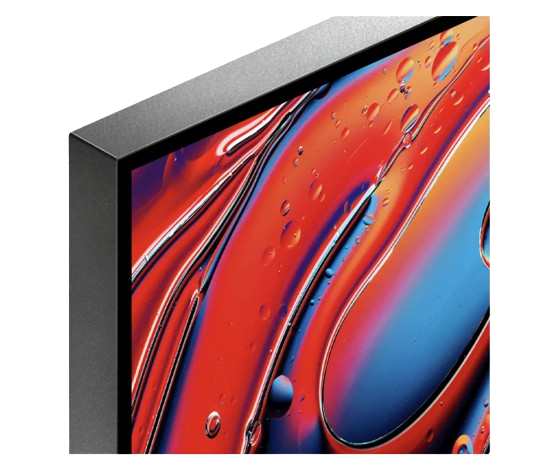

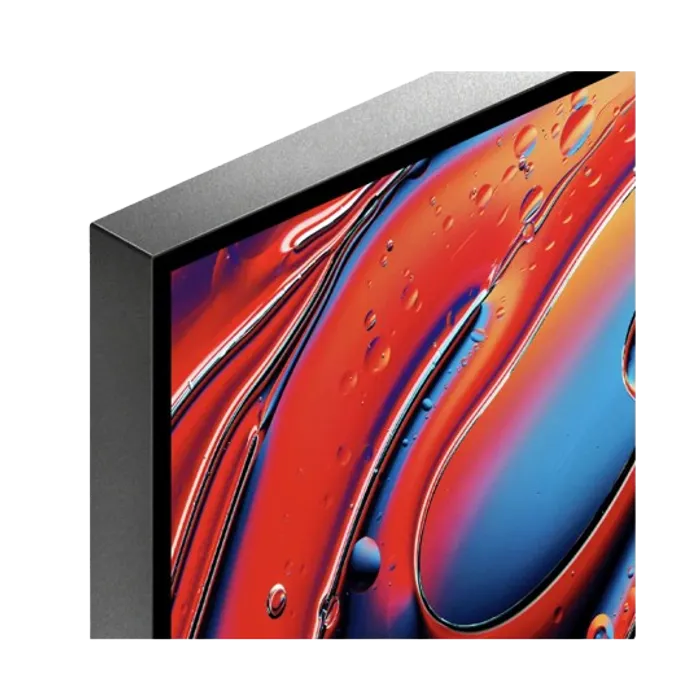

BEZEL DESIGN
Seamless Edge

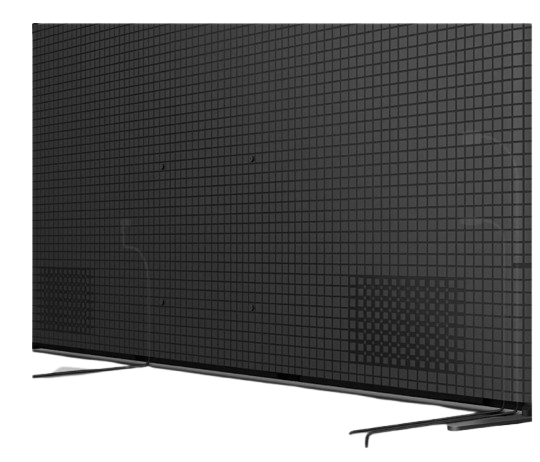

Cable Management
Yes
Frame color
Dark Silver/Vibration finish

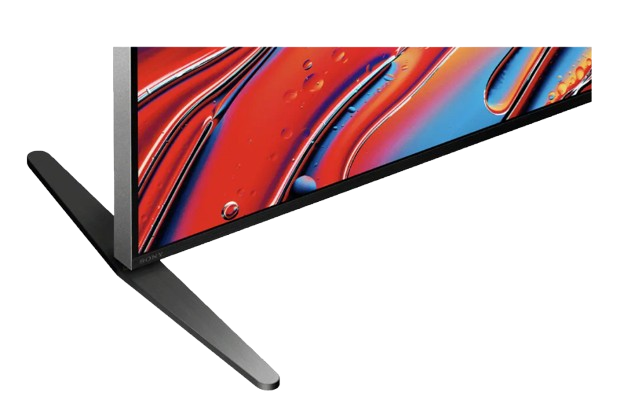

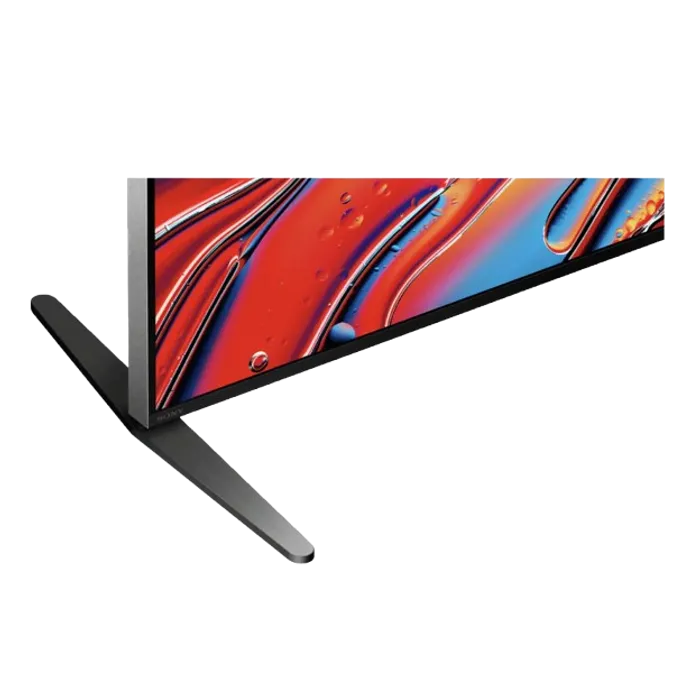

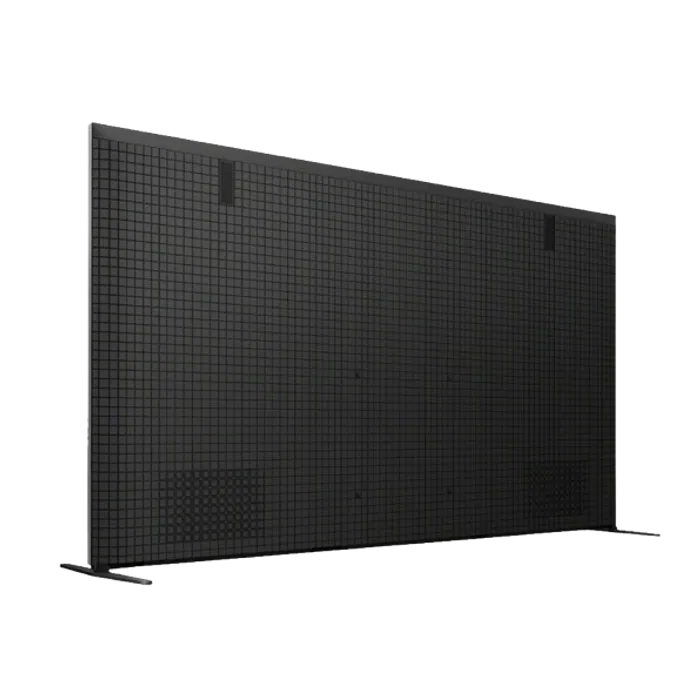

Stand design
Underlay stand

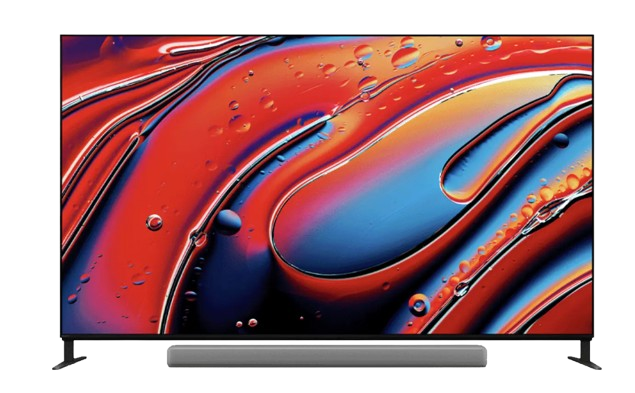

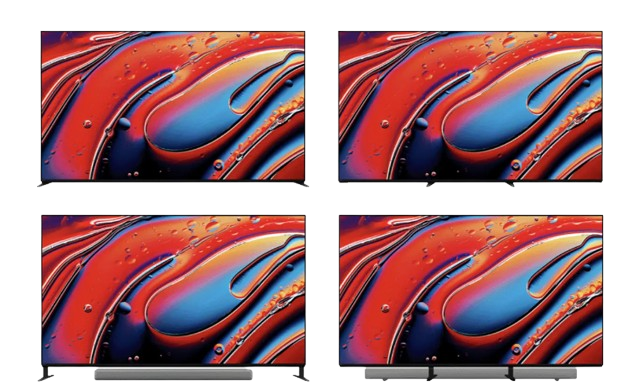

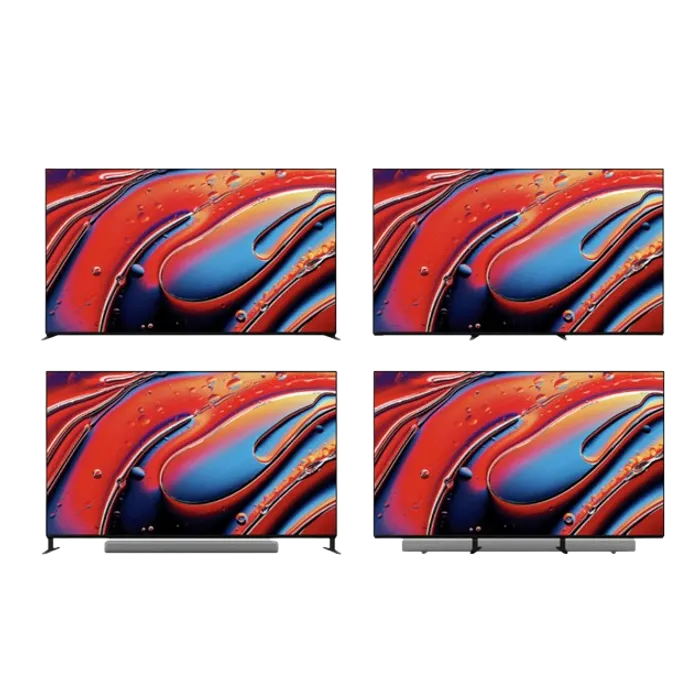

STAND POSITION
4way position(Outside/Inside/Ouside for Soundbar/Inside for Soundbar)
Display Features
Display Type
LCD Mini LED
X-Anti Reflection
Yes
X-Wide Angle
Yes
Backlight dimming type
Full Array Local Dimming
Display Specs
Screen Size (inch, measured diagonally)
85"(84.6")
Screen Size for WEB(diagonal, cm, integer or 1st decimal)
215 cm
Display resolution (H x V, pixels)
3840 x 2160
Viewing Angle (Right/Left)
178(89/89) degree
Viewing Angle (Up/Down)
178(89/89) degree
Display Resolution
QFHD
Aspect Ratio
16:9
Backlight type
Mini LED
Energy Saving & Efficiency
Dynamic Backlight Control
Yes
Power Saving Mode / Back Light Off Mode
Yes
SORPLAS
Yes
Measurements (Approx.)
Dimension of TV without Stand (W x H x D)
1888 x 1085 x 49 (32.9) mm / 74 3/8 x 42 3/4 x 1 15/16 (1 5/16) inch
Dimension of Package Carton (W x H x D)
2004 x 1220 x 226 mm / 79 x 48 1/8 x 9 inch
AC Cable Length
1500mm
TV with Stand (Standard position) (W x H x D)
1888 x 1097 x 457 mm / 74 3/8 x 43 1/4 x 18 inch
TV with Stand (Narrow position) (W x H x D)
1888 x 1097 x 457 mm / 74 3/8 x 43 1/4 x 18 inch

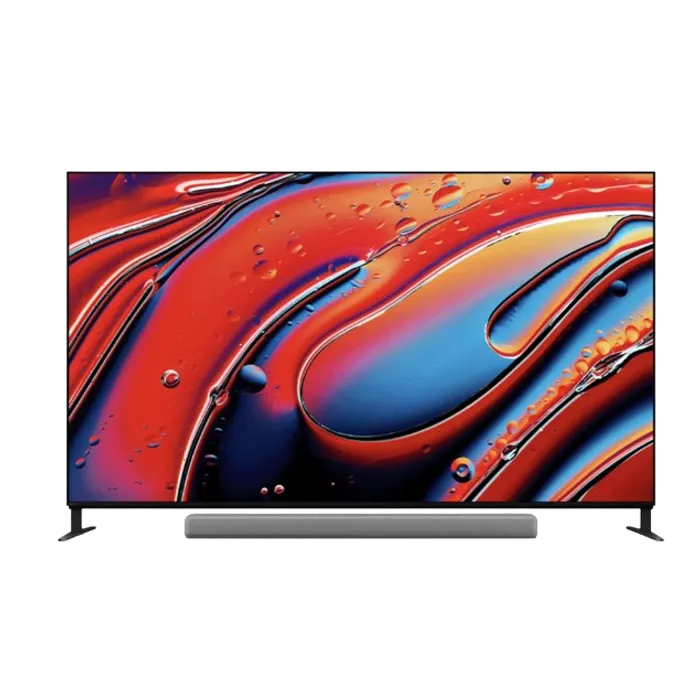

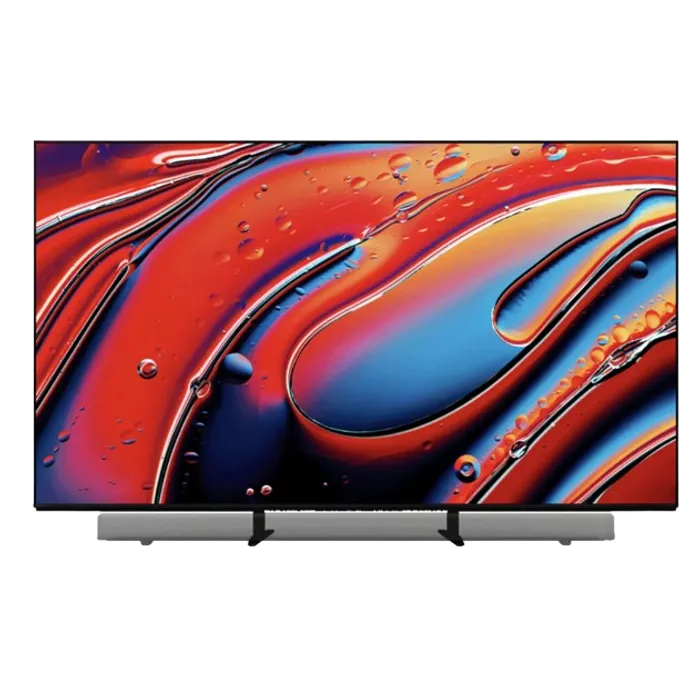

TV with Stand (Soundbar position) (W x H x D)
1888 x 1158 x 457 mm / 74 3/8 x 45 5/8 x 18 inch
STAND WIDTH (STANDARD POSITION)
1882 mm / 74 1/8 inch
STAND WIDTH (NARROW POSITION)
753 mm / 29 3/4 inch
STAND WIDTH (SOUNDBAR POSITION)
1882 mm / 74 1/8 inch

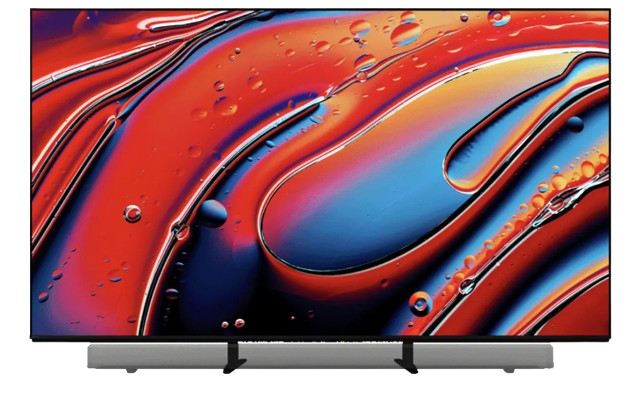

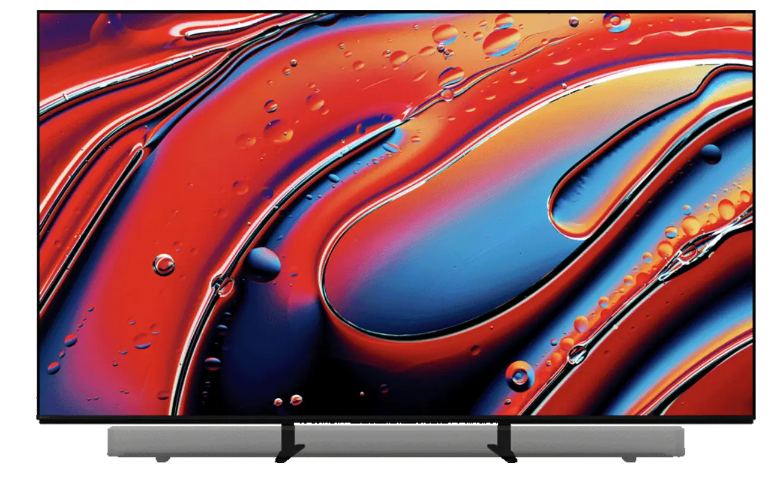

TV with Stand (Inside for Soundbar) (W x H x D)
1888 x 1158 x 457 mm / 74 3/8 x 45 5/8 x 18 inch
Network Features
APPLE AIRPLAY
Yes
APPLE HOMEKIT
Yes
Home Network Feature
Home Network Client, Home Network Renderer
Wi-Fi Certified
Yes
Wi-Fi Standard
a/b/g/n/ac/ax
Wi-Fi Frequency
2.4GHz/5GHz/6GHz * Only for the United States/Canada/Mexico/Dominican Republic models.
Codec for Home Network
MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2,AVC/MP4(XAVC S):AVC,MPEG4,HEVC/AVI:Xvid,MotionJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4,MotionJpeg/MKV:Xvid,AVC,MPEG4,VP8.HEVC/WEBM:VP8/3GPP:MPEG4,AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC/JPEG,WEBM:VP9/AC4/ogg/AAC/ARW(Screen nail only)
Wireless LAN
Integrated
Control Menu
Yes
ECO Dashboard
Yes
Optional Accessories
Wallmount Bracket
Sony original Wall-Mount Bracket * Please refer this compatibility list: https://www.sony.net/wall-mount-bracket
Camera Unit (option)
CMU-BC1
Regulation and Standard Compliance

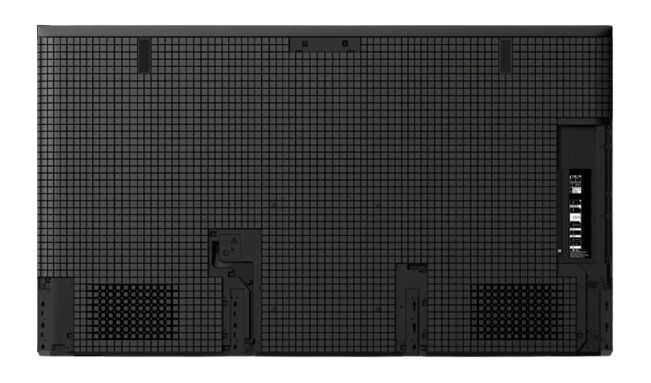

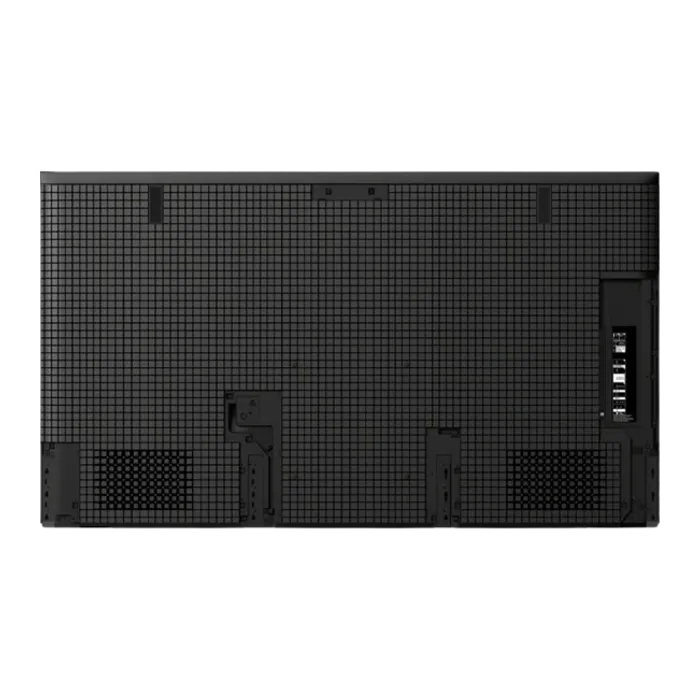

VESA® Hole Spacing Compatible
Yes
VESA® Hole Pitch(W x H)
400 x 400 mm / 15 3/4 x 15 3/4 inch
Sensing Features
sensor
Light/Color
Supplied Accessories
Operating Instructions
EN,FR,ES
AC Power Cord Spec
(Pig-tail43mm) (US) (2pin) (flat blades Polarity)
Quick Setup Guide / Supplement CUE (GA)
EN,FR,ES,PT
Table Top Stand
Separate (Assembly required)

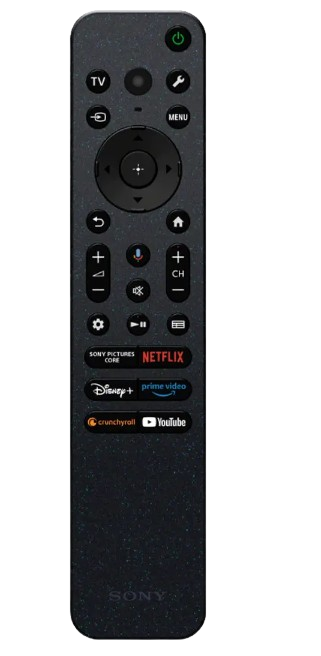

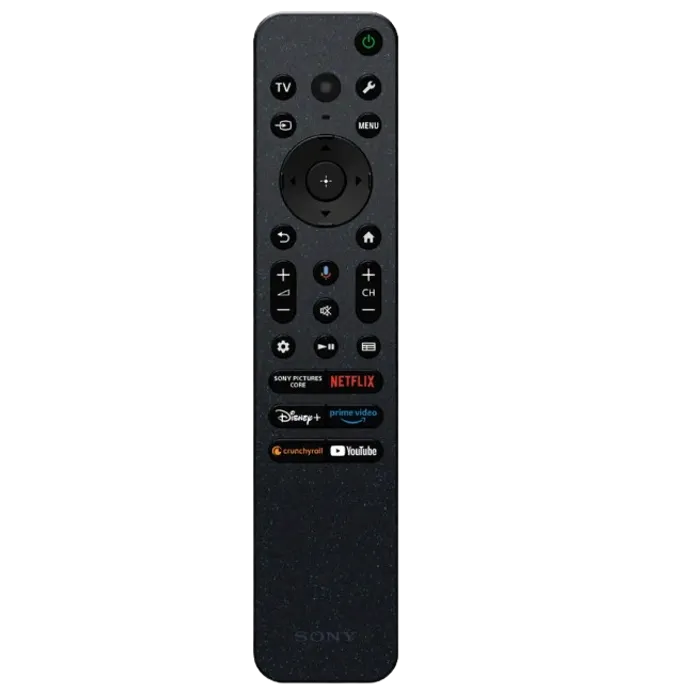

Voice Remote Control (Supply)
RMF-TX920U
Voice Remote Control (supply) included Rechargeable Battery
Yes
USB Type-C Cable
Yes
TV System
TV System (Analog)
M * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Tuner Channel Coverage (Analog)
VHF: 2-13/UHF: 14-69/CATV: 1-135
TV System (Digital Terrestrial)
ATSC/ ATSC3.0(NEXTGEN TV / Available only when region/country is set to U.S.A.) * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Tuner Channel Coverage (Digital Terrestrial)
VHF: 2-13/UHF: 14-69(2-13/14-36 for ATSC3.0) * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
TV System (Digital Cable)
Clear QAM * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Tuner Channel Coverage (Digital Cable)
CATV: 1-135 * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Number of Tuners (Terrestrial/Cable)
1(Digital/Analog)
Color System
NTSC
Color Space
sRGB/BT709,BT2020,AdobeRGB,DCI

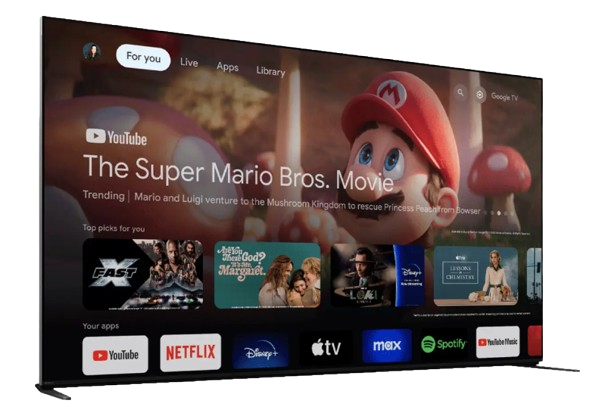

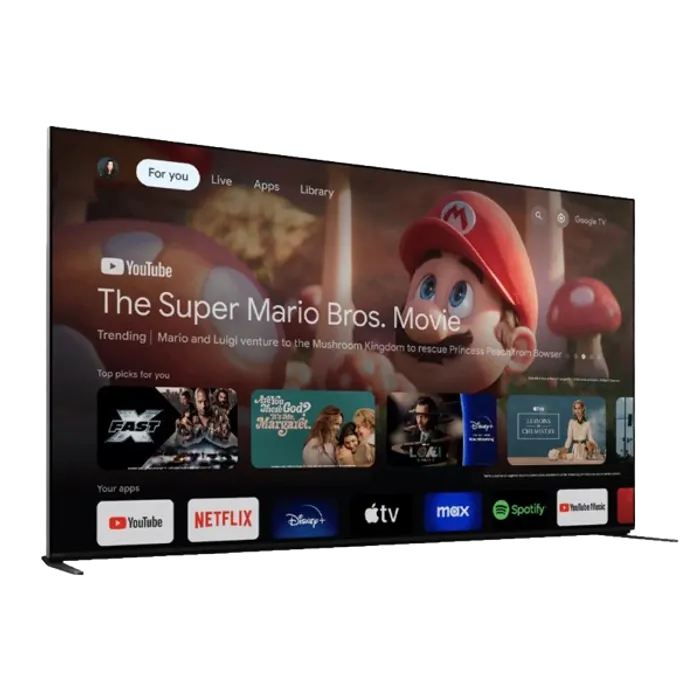

Operating System
Google TV
On-board Storage (GB)
32GB
Weights (Approx.)
Weight of TV without Stand
52.4 kg / 115.5 lb
Weight of Package Carton(Gross)
71 kg / 156.4lb.
TV with Stand (Standard position)
55.7 kg / 122.7 lb
TV with Stand (Narrow position)
55.7 kg / 122.7 lb
TV with Stand (Soundbar position)
55.7 kg / 122.7 lb
Stand Width (Inside for Soundbar)
753 mm / 29 3/4 inch
TV with Stand (Inside for Soundbar)
55.7 kg / 122.7 lb
Audio Features
ACOUSTIC AUTO CALIBRATION
Room & User Position Compensation
Clear Phase
Yes
S-Master
S-Master Digital Amplifier
Auto Surround
Yes
DTS audio format support
DTS Digital Surround, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X
Simulated surround sound
S-Force Front Surround
Dolby audio format support
Dolby Audio, Dolby Atmos
VOICE ZOOM
Voice Zoom 3 (Also available with compatible Sony Soundbar)
HDMI Audio Return Channel(ARC)
Yes (eARC/ARC)
Advanced Auto Volume
Yes
Auto Mute (on no signal)
Yes
HDMI input Audio format
7.1 channel linear PCM: 32/44.1/48/88.2/96/176.4/192kHz 16/20/24bits, Dolby Audio, Dolby Atmos, DTS, DTS Express, DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS:X
ARC output format
Two channel linear PCM: 48kHz 16bits, Dolby Audio, Dolby Atmos, DTS
ACOUSTIC CENTER SYNC
Yes (S-CENTER SPEAKER IN)
Ready for 360 Spatial Sound Personalizer
Yes (via Bluetooth)
Vertical Surround Engine
Vertical Surround Engine
Speaker Type-2
Frame Tweeter, Beam Tweeter
Simultaneous Sound Output with TV Speaker
Bluetooth A2DP Device

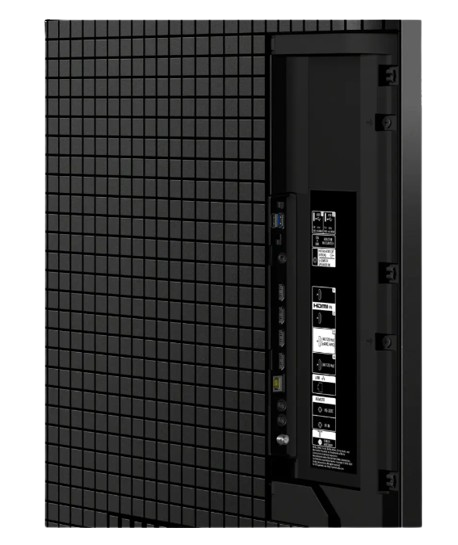

Inputs and Outputs
HDMI Signal
4096x2160p(24,60Hz), 3840x2160p(24,30,60,120Hz)*, 1080p(24,30,60,120Hz), 1080i(60Hz), 720p(24,30,60Hz), 480p* * 120Hz is supported by HDMI IN 3 and IN 4ö * Only for the United States/Canada/Mexico models. For other models, 4096x2160p(24,50,60Hz), 3840x2160p(24,25,30,50,60,100Hz*,120Hz*), 1080p(24,30,50,60,100,120Hz), 1080i(50,60Hz), 720p(24,30,50,60Hz), 576p, 480p *Only supported by HDMI 3 and 4
HDCP
HDCP2.3(for HDMI1/2/3/4)
Bluetooth profile support
Version 5.3,HID/HOGP/SPP/A2DP/AVRCP
4K 60P High-Quality formats
HDMI IN1, IN2 ports for 4K(up to 18Gbps) signal, HDMI IN3, IN4 port for 4K(up to 48Gbps) signal
AC Power Input
Pigtail (REAR)
RF (Terrestrial/Cable) Connection Input(s)
1(Side)
HDMI inputs total
4(4Side)
Digital Audio Output(s)
1(Side / Hybrid with S-Center Speaker Input)
USB ports
2(Side)
Ethernet inputs
1(Side)
RS-232C Input(s)
1(Side) * Only for the United States/Canada/Mexico/Dominican Republic models.
HDMI PC Input Format
640x480(31.5kHz,60Hz), 800x600(37.9kHz,60Hz), 1024x768(48.4kHz,60Hz), 1280x1024(64.0kHz,60Hz), 1152x864(67.5kHz,75Hz), 1600x900(55.9kHz,60Hz), 1680x1050(65.3kHz,60Hz), 1920x1080(67.5kHz,60Hz)
Power
Power Requirements (voltage)
AC 120V for UL cUL AC 110-240V for other
Power Requirements (frequency)
60Hz for UL cUL 50/60Hz for other
Rated Power Consumption
507 W
Power Consumption (Standby Mode)
0.5 W
Video Features
Picture modes
Vivid, Standard, Cinema, Professional, Calm, Photo, IMAX Enhanced, Dolby Vision (Vivid/Bright/Dark/Game), FPS game, RTS game
Auto Wide
Yes
Wide Mode
Full/Vertical Fit/Horizontal Fit/Original,Full/Vertical Fit/Horizontal Fit/Original
Motion enhancer
XR Motion Clarity
24p True Cinema
Yes
Live Colour™ Technology
Yes
CineMotion/Film Mode/Cinema Drive
Yes
4K Processor
XR Processor
HDR (High Dynamic Range) compatiblity
Yes(HDR10,HLG,Dolby Vision)
Panel Refresh Rate (Native Hertz)
120Hz
Dynamic Contrast Enhancer
Yes
XR Backlight Master Drive
Yes
Peak Luminance
XR Contrast Booster 30
TRILUMINOS
XR Triluminos Pro
Features for PlayStation®5 Auto HDR Tone Mapping
Yes
Features for PlayStation®5 Auto Genre Picture Mode
Yes
XR Clear Image
Yes
High Peak Luminance
Yes
Convenience Features
Features specified in HDMI2.1
4K120/eARC/VRR/ALLM/SBTM(Source-Based Tone Mapping)
Electronic Program Guide (EPG)
Yes
USB playback codecs
MPEG1:MPEG1/MPEG2PS:MPEG2/MPEG2TS(HDV,AVCHD):MPEG2,AVC/MP4(XAVC S):AVC,MPEG4,HEVC/AVI:Xvid,MotionJpeg/ASF(WMV):VC1/MOV:AVC,MPEG4,MotionJpeg/MKV:Xvid,AVC,MPEG4,VP8.HEVC/WEBM:VP8/3GPP:MPEG4,AVC/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC,JPEG/HEIF/WEBM:VP9/AC4/ogg/AAC/ARW(Screen nail only)
Text Input Language
ENG / FRA / GER / HEB / ITA / RUS / SPA / VIE / JPN
Chromecast built-in
Yes
Application Store
Yes (Google Play Store)
i-Manual
Yes
Parental Control
Yes
Channel Block (with password)
Analog & Digital
Show/Hide Channels
Yes(Digital&Analog)
On Screen Clock
Yes
Sleep Timer
Yes
On/Off Timer
Yes
USB drive format support
Yes (Supported File System: FAT16/FAT32/exFAT/NTFS)
Display Language
AFR,AMH,ARA,ASM,AZE,BEL,BUL,BEN,BOS,CAT,CZE,DAN,DEU,GRE,ENG,SPA,EST,BAQ,PER,FIN,FRA,GLG,GUJ,HIN,HRV,HUN,IND,ISL,ITA,HEB,JPN,KAZ,KAN,KOR,KIR,LAO,LIT,LAV,MAC,MAL,MON,MAR,MAY,BUR,NOB,NEP,NLD,ORI,PAN,POL,POR,RUM,RUS,SOL,SLV,ALB,SRP,SWE,SWA,TAM,TEL,THA,TGL,TUR,UKR,URD,UZB,VIE,zh_CN,zh_HK,zh_TW,ZUL
Auto Shut-off
Yes
UVC/UAC support
Yes
Variable Refresh Rate (VRR)
Yes (for HDMI3/4)
Auto Low Latency Mode (ALLM)
Yes (for HDMI1/2/3/4)
BUILT-IN MIC SWITCH
Yes(Left)
Built-in Mic
Yes
BRAVIA SYNC (INCLUDING HDMI-CEC)
Yes
Optimization of HDMI input
Prioritize HDMI content type information
Source-Based Tone Mapping(SBTM)
Yes(for HDMI3/4)
General Features
Auto Calibration with CalMAN
Yes
NETFLIX CALIBRATED MODE
Yes (Adaptive Calibrated Mode)
IMAX Certified Model
Yes
Closed Captions (Analog)
Closed Caption
Demo Mode
Yes(e-POP only)
SMART TV
Google TV
SONY PICTURES CORE Calibrated mode
Yes
Prime Video Calibrated mode
Yes * Firmware update may be required.
SONY PICTURES CORE
10 credits/24 months
Lithium Battery
Yes
