SAMSUNG - SPLIT AC AR05AYHLAWKNSE
AR05 AC 0.5PK Alpha Inverter with Smart AirFlow
No need to worry about electricity bills
Perfect cooling coverage at every corner
Rapidly reach the desired temperature in a short time
Capacity
Capacity (Cooling, Btu/hr)
5000 Btu/hr
Capacity (Cooling, Min - Max, Btu/hr)
1706 ~ 6824 Btu/hr
Capacity (Cooling, kW)
1.465 kW
Capacity (Cooling, Min - Max, kW)
0.5 ~ 2.0 kW
Energy Efficiency
EER (Cooling, W/W)
3.06 W/W
CSPF
10.4
Energy Efficiency Class for cooling (Grade)
4
Noise Level
Noise Level (Indoor, High/Low, dBA)
43 / 32 dBA
Noise Level (Outdoor, High/Low, dBA)
52.0 dBA
Electrical Data
Power Source(Φ/V/Hz)
1 / 220-240 / 50
Power Consumption(Cooling, W)
485 W
Operating Current(Cooling, A)
3.2 A
Physical specification
Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜)
764×325×272 mm
Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
818×325×535 mm

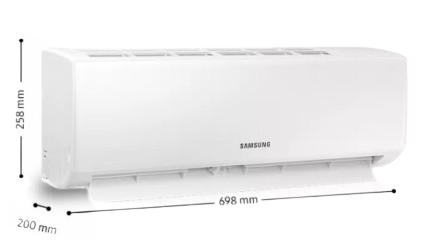

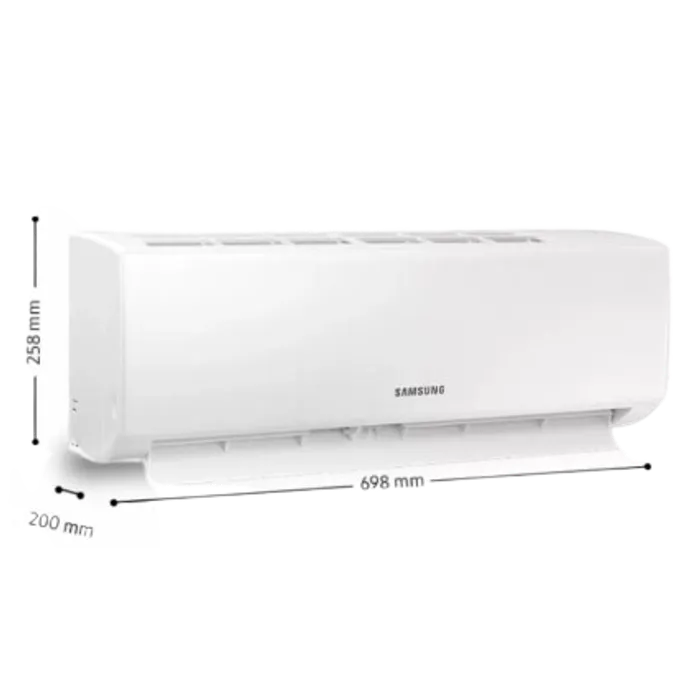

Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜)
698×258×200 mm
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜)
777×290×498 mm
Gross Weight (Indoor, kg)
8.3 kg
Gross Weight (Outdoor, kg)
22.0 kg
Net Weight (Indoor, kg)
6.5 kg
Net Weight (Outdoor, kg)
20.0 kg
Loading Quantity (20/40/40Hft with Pipe)
342
Technical Information
Piping Length (Max, m)
15 m
Piping Height (Max, m)
5 m
SVC Valve (Liquid (ODxL))
6.35
SVC Valve (Gas (ODxL))
9.52
Air Circulation (Cooling, ㎥/min)
380 ㎥/min
Refrigerant (Type)
R32
Refrigerant (Charging, kg)
0.325 kg
Refrigerant (Charging, tCO2e)
0.22tCO2e
Low Ambient (Cooling, ℃)
16~31 ℃
Outdoor Unit (Compressor Type)
Rotary
Outdoor Unit (Anti-Corrosion Fin)
Yes
Air Flow
Air Direction Control (Up/Down)
Auto
Air Direction Control (Left/Right)
Manual
Air Flow Control Step (Cool/Fan)
Turbo/Hi/Lo
Air Purification
Easy Filter Plus (Anti-Bacteria)
Yes
Convenience
SmartThings
No
Filter Cleaning Indicatior
Yes
Indoor Temp. Display
Yes
24-Hour Timer
Yes
Operating Mode
Auto Mode
Yes
Fast Cool
Yes
Good Sleep
Yes
Eco Mode
Yes
Dehumidification
Yes
Fan Mode
Yes
Smart
WiFi Embedded
No
App Connectivity
SmartThings App Support
No
Color Putih
