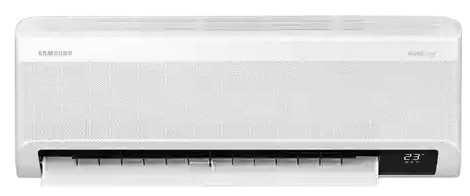

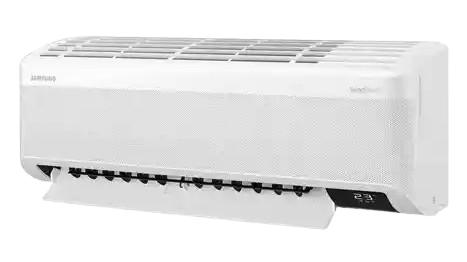

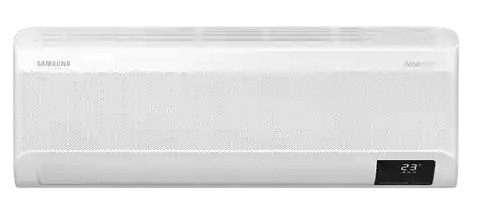

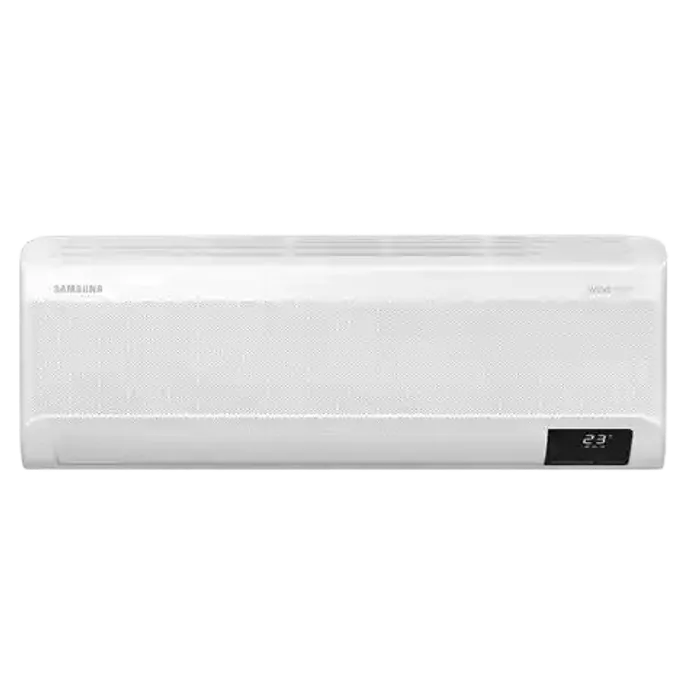

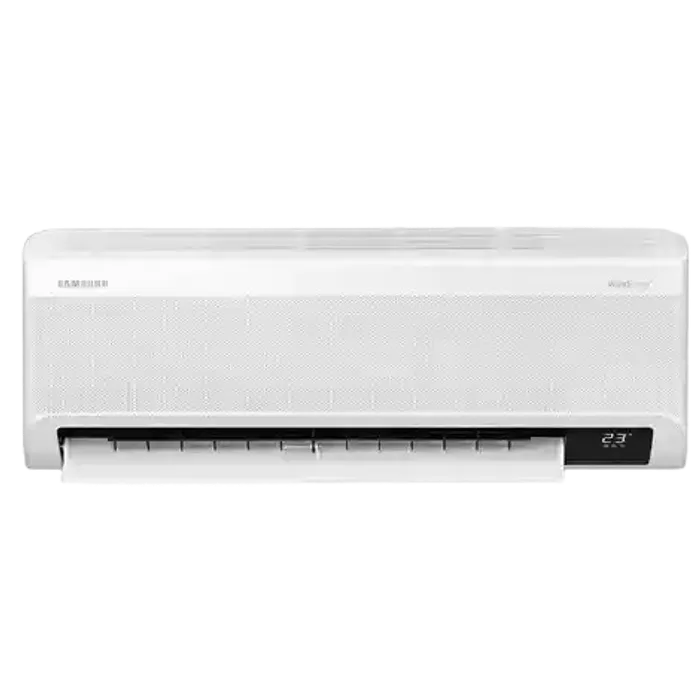

SAMSUNG-SPLIT AC-AR10CYFAAWKNSE
Physical specification
Gross Dimension (Indoor, WxHxD, ㎜*㎜*㎜) : 880*290*375 mm
Gross Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) : 778*550*331 mm
Net Dimension (Indoor, WxHxD, ㎜*㎜*㎜) : 820*299*215 mm
Net Dimension (Outdoor, WxHxD, ㎜*㎜*㎜) : 660*475*242 mm
Gross Weight (Indoor, kg) : 10.4 kg
Gross Weight (Outdoor, kg) : 20.8 kg
Net Weight (Indoor, kg) : 9.1 kg
Net Weight (Outdoor, kg) : 19.0 kg
Loading Quantity (20/40/40Hft without Pipe) : 120 / 248 / 280
Color Putih
Technical Information
Piping Length (Max, m) : 15 m
Piping Height (Max, m) : 7 m
SVC Valve (Liquid (ODxL)) : 6.35
SVC Valve (Gas (ODxL) : 9.52
Moisture Removal (l/hr) : 1.1 l/hr
Air Circulation (Cooling, ㎥/min) : 10.7 ㎥/min
Refrigerant (Type) : R32
Refrigerant (Charging, kg) : 0.50 kg
Refrigerant (Charging, tCO2e) : 0.34tCO2e
Low Ambient (Cooling, ℃) : 16~46 ℃
Outdoor Unit (Compressor Type) : BLDC
Outdoor Unit (Anti-Corrosion Fin) : Yes
Air Flow
WindFree Cooling : Yes
Air Direction Control (Up/Down) : Auto
Air Direction Control (Left/Right) : Auto
Air Flow Control Step (Cool/Fan) : 5/4
Air Purification
Copper Anti-bacterial Filter : Yes
Auto Clean (Self Cleaning) : Yes
Convenience
SmartThings : Yes
AI Auto Cooling : Yes
Filter Cleaning Indicatior : Yes
Indoor Temp. Display : Yes
Display On/Off : Yes
Beep On/Off : Yes
24-Hour Timer : Yes
Auto Restart : Yes
Operating Mode
Auto Mode : Yes
Fast Cool : Yes
Good Sleep : Yes
Eco Mode : Yes
Dehumidification : Yes
Fan Mode : Yes
Quiet : Yes
Smart
WiFi Embedded : Yes
App Connectivity
SmartThings App Support : Yes
